Airpipe Product Catalog

Premium Modular Aluminium Piping Solutions

Rigid Aluminium Pipes

Sizes: DN20 - DN200 | Lengths: 3m & 6m

Clean air certified, corrosion resistant, and lightweight.

Get Technical Specs

Pipe-to-Pipe Connectors

Quick Install | Leak-Free O-Ring Seal

Modular joints for easy assembly without welding.

View All Sizes

Quick Drop Units

For Workstations | High Volume Flow

Safe and convenient outlets for air tools and hoses.

Explore Outlets

Ball Valves & Control

Quick Plug | Lockable Design

Maintain flow control with industrial-grade safety valves.

View Valve Range

Flexible Pressure Hoses

Vibration Absorption | SS304 / Rubber

Ideal for compressor outlets and expansion loops.

Check Sizes

Fixture Accessories

Pipe Clips | Brackets | Spacers

Complete support systems for wall and roof installation.

View Hardware

Rigid Aluminum Pipe

ISO 8573-1 Certified
High Performance Air Solution

Max Pressure

16 Bar

Temperature

-20°C to +80°C

Vacuum

1 mbar (abs)

Material

Marine Grade

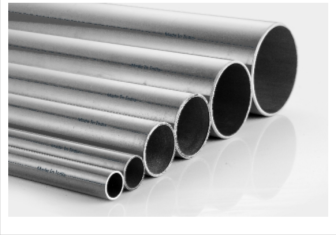

● Standard Aluminum Pipe

Clean air certified systems with optimum flow performance. Lightweight, extruded marine-grade aluminum with high-quality powder coated exterior for lasting durability.

Suitable for Compressed air, oil-free, lubricated, vacuum, and inert gases.

New Part No.	Diameter	OD(mm)	ID(mm)	Length(M)
30100010001	20	20.1	17.5	6 / 3
30100020001	25	25.1	22.5	6 / 3
30100040101	40	40.1	36.5	5.8 / 2.9
30100060001	63	67.6	63	6 / 3
30100080001	100	101.8	96.8	6 / 3

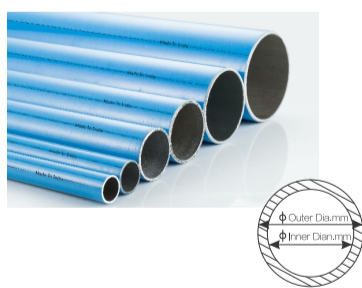

●●● Color Coded Pipes

Specialized color-coded piping for quick identification of gas lines as per industrial requirements. Maintains the same technical specifications as standard pipes.

Custom Part No.	Diameter	OD(mm)	ID(mm)	Application
30100010002	20	20.1	17.5	Nitrogen / Argon
30100020002	25	25.1	22.5	Helium / CO₂
30100040002	40	40.1	36.5	Custom Gas

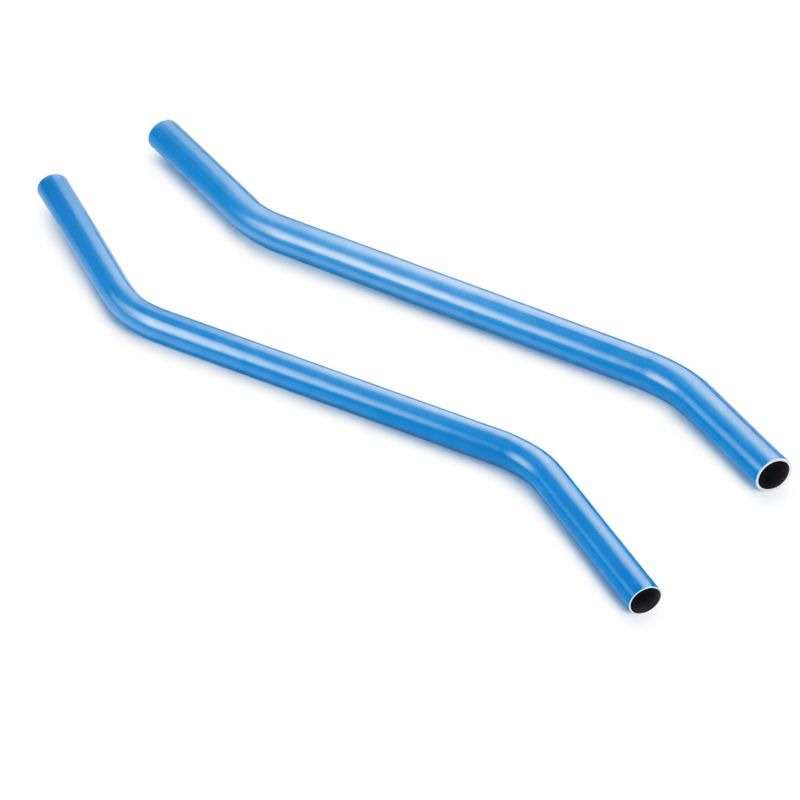

S-Bend Module

Designed to fix drop legs closer to the wall when the main ring is installed at a distance.

Part No.	Diameter	Offset (a)	Length (b)
30101010001	20	170	0.5
30101020001	25	120	0.5

Connectors, Elbows & Tees

Precision modular fittings for professional industrial air networks.

Equal 90° Elbow

New Part No.	Dia	L1	L	Z1
30203010002	20	80	100	61
30203020002	25	83	105	67
30203040002	40	109	139	91

Equal Tee Connector

New Part No.	Dia	L	L1	Z1
30205010002	20	160	80	49
30205020002	25	166	83	52
30205040002	40	218	109	69

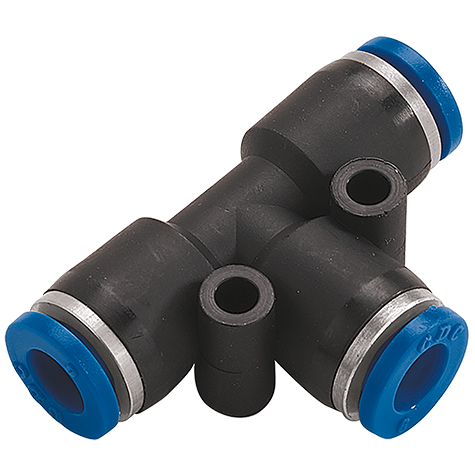

Reducing Tee

New Part No.	Nominal	L	Z1	Z2
30207020102	25x20	160	50	51
30207040202	40x25	200	61	60
30207050201	50x25	220	70	71

End Cap

New Part No.	Nominal	L	D1	Z1
30206010002	20	70	22	40
30206020002	25	70	27	40
30206040002	40	90	42	49

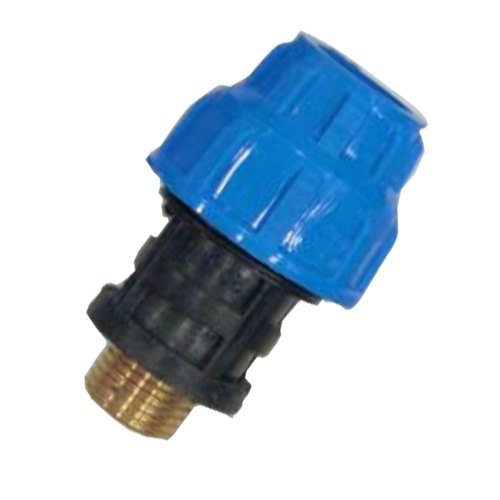

Male Threaded Adapter

New Part No.	Dia	L	Z1	BSP
30211010002	20	88	59	1/2"
30211020202	25	93	62	1"
30211040302	40	118	81	1-1/4"

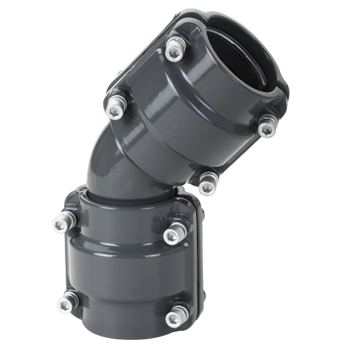

Equal 45° Elbow

New Part No.	Dia	L	L1	Z1
30204010002	20	118	70	39
30204020002	25	119	71	40
30204040002	40	159	92	52

Installing AIRpipe Compressed Air System

General Installation Guidelines

AIRpipe systems are designed for fast, safe, and efficient installation in industrial compressed air networks. Proper planning before installation ensures long-term performance and reduced maintenance.

Install AIRpipe downstream of the air receiver
Comply with all applicable safety and industry standards
Use flexible hoses at system entry points
AIRpipe components are supplied ready for use

Component Assembly

AIRpipe components are engineered for precision fitment. The modular design allows easy assembly without welding, reducing installation time and risk.

Follow recommended assembly methods
Ensure proper alignment during installation
Use only compatible AIRpipe fittings
Calibrated aluminium pipes ensure perfect sealing

Expansion, Protection & Safety

Thermal expansion and mechanical protection must be considered during system design to ensure durability and uninterrupted airflow performance.

Allow for expansion and contraction of pipelines
Protect pipes from mechanical impact
Avoid rotation of pipes in support brackets
Do not embed AIRpipe directly into concrete

Best Practices for Optimal Performance

Following best installation practices helps maintain air quality, reduce pressure drops, and extend the lifespan of the compressed air system.

Minimize pipe diameter reductions
Maintain high-quality compressed air levels
Correctly size the system for optimal flow
Regular inspection ensures peak efficiency

Industrial Flange Catalog

Standard Series

Flange Connector

Designed for heavy-duty industrial applications, these connectors provide a stable and leak-proof joint for large diameter aluminium piping systems.

Part No.	Dia	Bolt	D1	D2
30270060001	65	M16	185	145
30270070001	80	M16	200	160
30270100001	150	M20	285	240

* Gaskets and 8 bolts included.

Reduction Series

Reduced Flange Connector

Optimized for transitioning between different pipe diameters while maintaining full structural integrity and pressure ratings.

Part No.	Dia	Flange	Bolt	D1
30271070601	65	80	M16	200
30271080701	80	100	M16	220
30271121101	200	250	M22	405

Stainless Steel

Threaded Flange (SS)

Premium Grade Stainless Steel threaded flanges for high-corrosion environments and specialized gas distribution networks.

Part No.	Dia	Thread	Bolt	H
30279020201	25	1"	M12	28
30279050501	50	2"	M16	32
30279101001	150	6"	M20	44

Carbon Steel

Threaded Flange (CS)

Heavy-duty Carbon Steel threaded flanges designed for robust performance and high-pressure air distribution at a cost-effective price point.

Part No.	Dia	Thread	Bolt	H
30278020201	25	1"	M12	28
30278060601	65	2-1/2"	M16	32
30278101001	150	6"	M20	44

ABOUT MADHAV CREATION

Leading Industrial Pipeline Specialists

Madhav Creation Technology is a premier supplier of high-performance compressed air pipeline systems. Serving industries like Automobile, Food, Engineering, and Electronics for over two decades, we specialize in delivering end-to-end air distribution solutions that enhance productivity and performance.

ISO 8573-1 Certified
10-Year Limited Warranty
Vibration & Heat Resistant
Energy Saving Design
Leak-Free O-Ring Sealing
Modular Installation

1500+

Meters Installed

25+

Industries Served

98%

Client Satisfaction

20+

Years Experience

Rigid Aluminium Pipe

Superior modular aluminium piping system designed for clean, dry, and efficient compressed air distribution.

Technical Advantages

Our pipes feature a high-quality powder-coated exterior and clean air certification. They are lightweight yet strong, ensuring a long service life.

Working Pressure: Max 16 Bar
Temperature: -20°C to +80°C
Vacuum: 1mbar (absolute)
Compatibility: Air, Vacuum, Inert Gases

Standard Size Range

DN Size	OD (mm)	ID (mm)	Length (M)
DN20	20.1	17.5	3 / 6
DN25	25.1	22.5	3 / 6
DN40	40.1	36.5	5.8
DN50	50.1	45.7	6
DN63	67.6	63	5.8
DN80	84.8	80	5.8

Fittings & Components

A comprehensive range of modular fittings for a seamless, professional air network.

Connector

Pipe Connector

Direct pipe-to-pipe connection with leak-proof O-ring sealing.

Connector

90° Elbow

Smooth direction change with zero airflow restriction.

Distribution

Equal Tee

Splits air flow in three directions with consistent pressure.

Outlet

Quick Drop Unit

Convenient outlet points for workstations and assembly lines.

Control

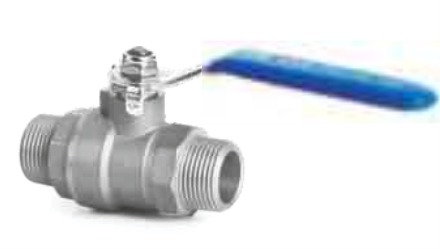

Ball Valve

Quick plug ball valve for separation and maintenance.

Flexible

Flexible Hose

Vibration absorption and expansion loop management.

Technical Edge

Why industries prefer Madhav Creation Airpipe systems.

Leak-Proof Network

Precision joints and O-ring technology ensure zero air loss, saving energy costs daily.

Quick Installation

Lightweight aluminium with modular fittings avoids welding, threading, or special tools.

Anti-Corrosive

Powder-coated aluminium never rusts, keeping the internal air quality pure for machines.

Low Pressure Drop

Smooth internal bore allows maximum air volume and flow, reducing compressor load.

Reusable System

The entire piping can be dismantled and reinstalled at a new location easily.

ISO Standard

Complies with international standards ensuring safety and long-term reliability.
